Brand: WatchGas

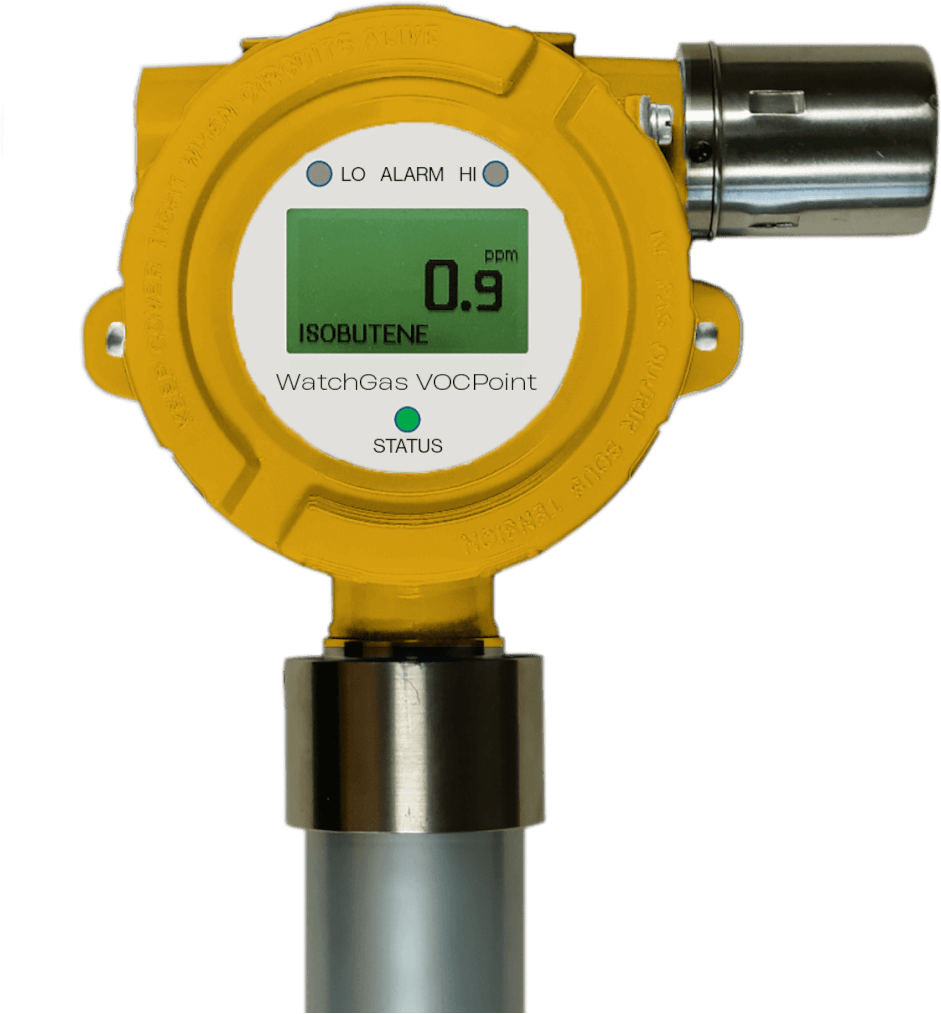

Fixed photoionization detector for VOC monitoring in hazardous areas.
The VOCPoint is a high-performance stationary PID detector designed for continuous monitoring of volatile organic compounds (VOCs). It offers high sensitivity, long lamp life and stable operation, making it ideal for industrial environments and explosive atmospheres.
Up to 2000 ppm with high resolution at low concentrations.
Stable 10.6 eV lamp with long service life up to 15,000 hours.
Integrated activated carbon filter provides automatic fresh air setup.
Built-in compensation ensures stable readings in harsh environments.
4–20mA, relay outputs and Modbus RS485 communication.
ATEX and IECEx certified for hazardous area use.
| Detection Principle | PID (10.6 eV) |
| Range | 0–2000 ppm |
| Resolution | Up to 0.01 ppm |
| Response Time | <10 sec |
| Power Supply | 9–36 VDC |
| Output | 4–20mA + RS485 Modbus |
| Relays | 3 SPDT |
| Operating Temp | -10°C to +55°C |
| Ingress Protection | IP64 |
| Certification | ATEX / IECEx |
