Brand: Safegas
Central controller for gas detection system integration.

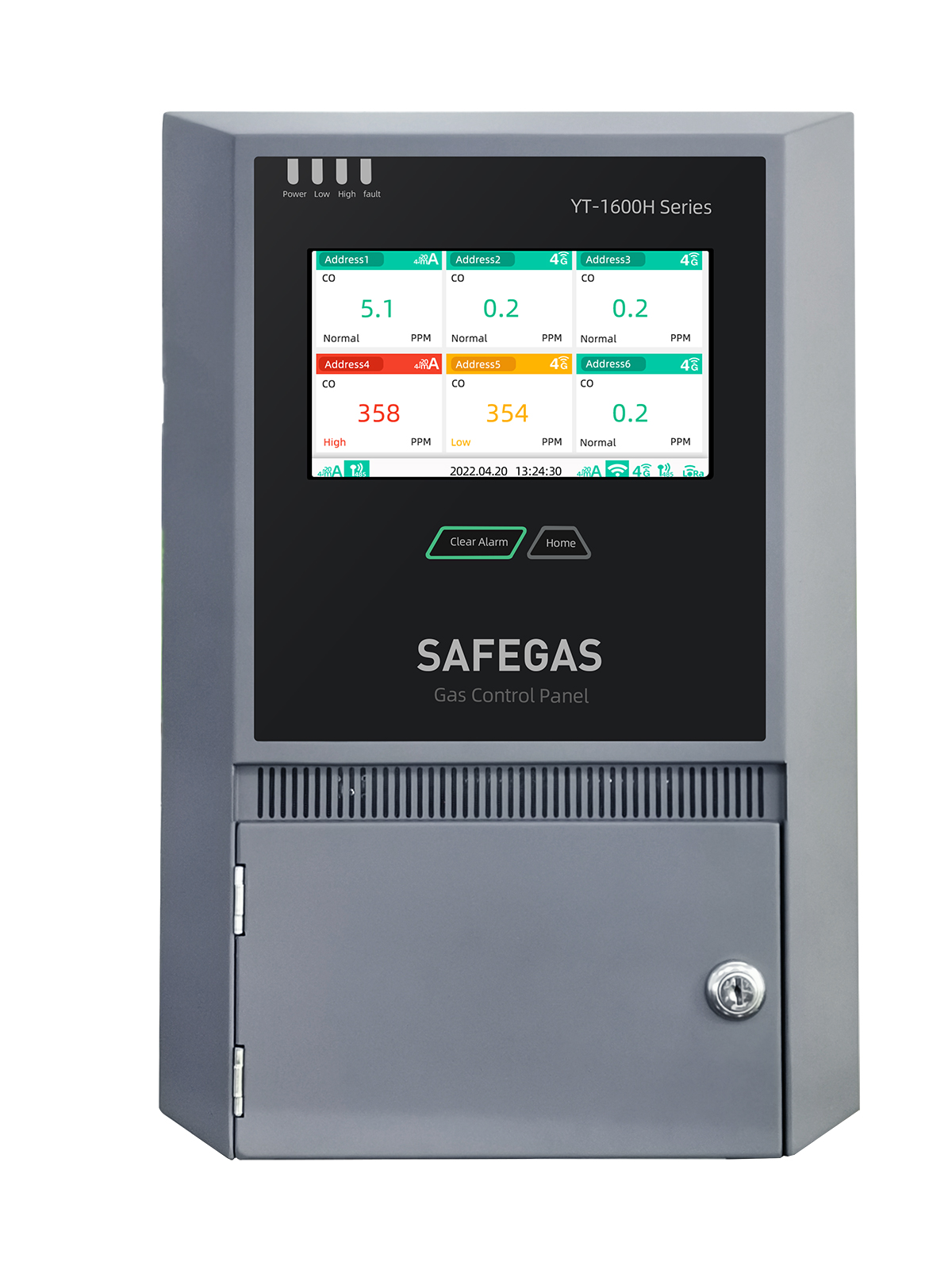

The YT-1600H is a bus system controller designed to integrate multiple gas detectors into a centralized monitoring system. It supports remote monitoring, alarm control and automation of safety systems such as fans, pumps and valves.
Connect up to 100–132 gas detectors into a single system.
Controls fans, pumps, valves, alarms and safety equipment.
7-inch color display for real-time monitoring and control.
Supports RS485, 4–20mA and optional wireless communication.
Stores alarm events and measurement data with export function.
Cloud, mobile and PC monitoring with SMS/email alerts.
| Display | 7" Touch Screen (800×480) |
| Capacity | Up to 132 detectors |
| Communication | RS485 / 4–20mA / Wireless (optional) |
| Power Input | AC 220V |
| Power Output | DC 24V per channel |
| Installation | Wall-mounted |
| Operating Temp | -10°C to 50°C |
| Humidity | <95% RH |
| Dimensions | 464 × 280 × 100 mm |
